product description

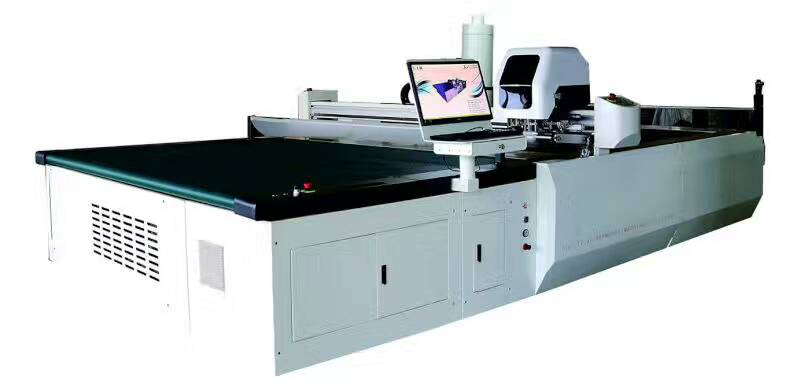

Automatic multi-ply cutting machine
Model:YL-1707C YL-2007C YL-2307C
| Technical Specification | |||
| Model | YL-1707C | YL-2007C | YL-2307C |
| Cutting area（L*W) | 1700mm*3100mm | 2000mm*3100mm | 2300mm*3100mm |
| Cutting speed | 55m/min | ||
| Max. cutting height | 70mm After vacuum compression) | ||
| Cuting mode | Cutter up and down reciprocation | ||
| Cutting Precision | ≦±1mm | ||
| Voltage & Power | AC 380V 50Hz 30Kw | ||
| Compressed air Air pressure | 0.55Mpa | ||
| Air flow volume | 160L/min | ||
| Data connection mode | USB flash disk/Network | ||
| Noise control | 〱70DB | ||
| Sharpening mode | Abrasive belt sharpening | Grinding wheel sharpening | Grinding wheel sharpening |
| Machine size | 680cm*250cm*150cm | 680cm*280cm*150cm | 680cm*310cm*150cm |
| Machine weight | 2500KG | 3000KG | 3500KG |
Function
Fabric smart correction
Fault diagnosis
Change blade smart reminder
Software control to solve fabric hot melt
Standard configuration
Linear propulsion two-wheel counter-rotating knife device
Intelligent refilming device
Intelligent dust collecting device
Fault intelligent diagnosis
Daily report, monthly report management software
Optional configuration: double punch, electronic safety lever, blade cooling device
Machine dimension drawing
Product advantages
