product description

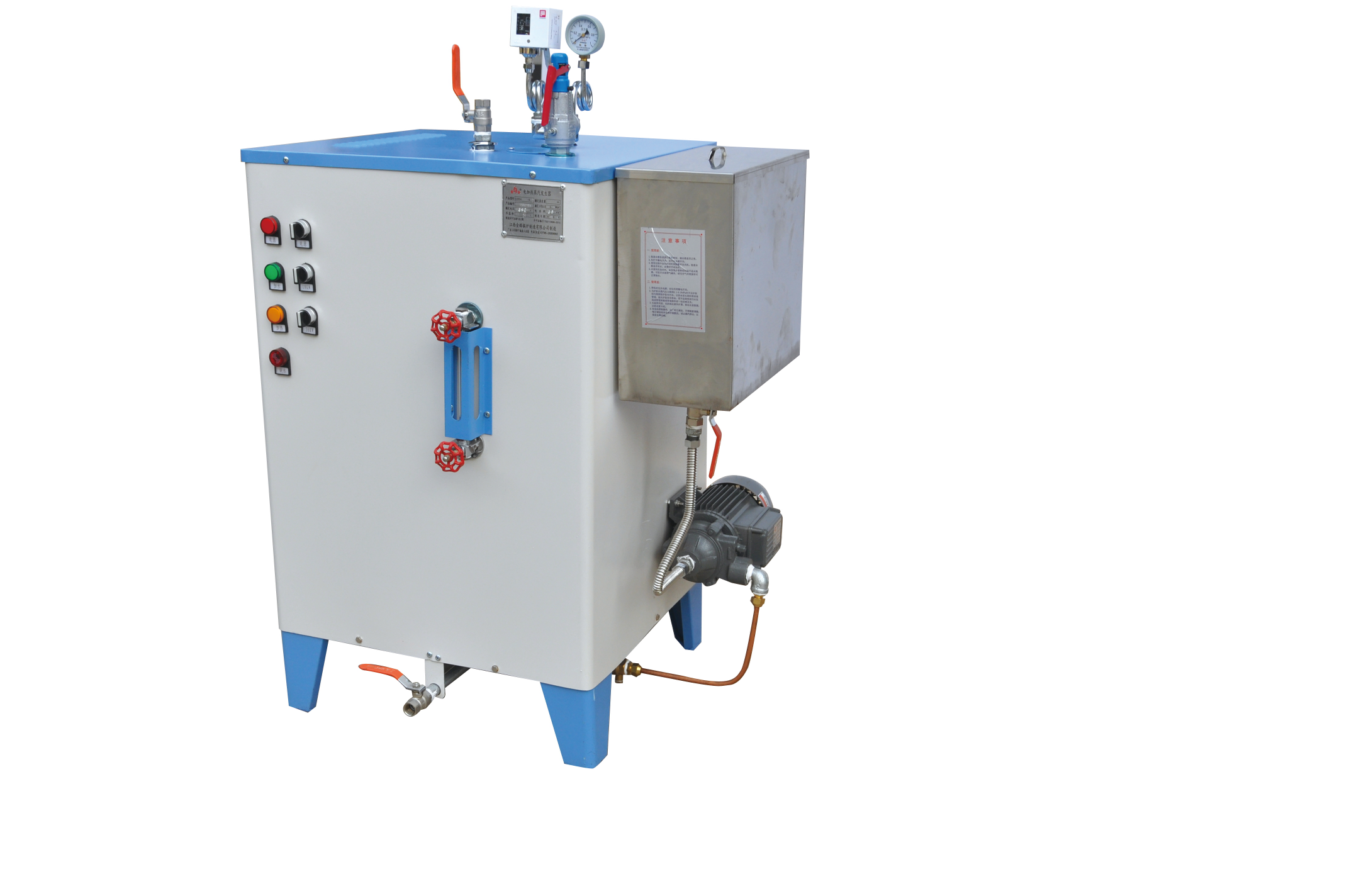

Electric steam generator
Model: YL-18KW YL-24KW YL-36KW YL-48KW
| Technical Specification | ||||
| Model | YL-18KW | YL-24KW | YL-36KW | YL-48KW |
| Heating Pipe Power | 18kw | 24kw | 36kw | 48kw |
| Water pump Power | 1.2kw | |||
| Voltage | 3PH AC 380V/50Hz | |||
| Rated evaporation capacity | 25kg/h | 32kg/h | 50kg/h | 66kg/h |
| Steam pressure | 0.7Mpa | |||
| Steam temperature | 165 | 165 | 165 | |
| Water capacity | 29L | |||
| Water inflow caliber | 15mm | 15mm | 15mm | 15mm |
| Steam outlet caliber | 15mm | 15mm | 15mm | 15mm |
| Drain valve caliber | 20mm | 20mm | 20mm | 20mm |
| Safety valve caliber | 15mm | 15mm | 15mm | 15mm |
| Machine size | 800*570**1100mm | 850*680**1230mm | ||
