product description

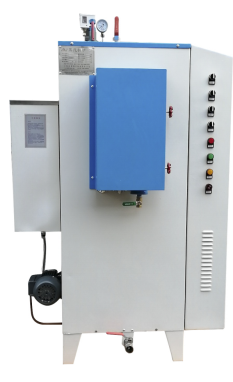

Electric steam generator
Model: YL-72KW YL-108KW
| Technical Specification | ||
| Model | YL-72KW | YL-108KW |
| Heating Pipe Power | 72kw | 108kw |
| Water pump Power | 1.2kw | |
| Voltage | 3PH AC 380V/50Hzv | |
| Rated evaporation capacity | 100kg/h | 150kg/h |
| Steam pressure | 0.7Mpa | |
| Steam temperature | 170 | 170 |
| Water capacity | 29L | |
| Water inflow caliber | 15mm | 15mm |
| Steam outlet caliber | 15mm | 20mm |
| Drain valve caliber | 25mm | 25mm |
| Safety valve caliber | 40mm | 40mm |
| Machine size | 800*600*1340 | |
